Bonded Seal (U SIT)
This is a fixing seal used by assembling it on the top of a nut or bolt or on a flange.
The role of the metal ring is to prevent the sealing lip of the turbid substance from being excessively compressed, providing a stable sealing effect, and as the internal pressure increases, the sealing force also increases. It can be used instead of existing washers and Teflon tape. Additionally, leakage between bolts and screw grooves can be resolved.
1. Pressure: MAX 600 Bar
2. Temperature: -35℃~+200℃ (depending on rubber material)
3. Metal material: STEEL, SUS 304, SUS 316
4. Rubber material: NBR, FKM, EPDM
*Type
-General type
This is the most common type and comes in various sizes.
-Self Centering
Concentricity is automatically maintained on the thread, making assembly easy.

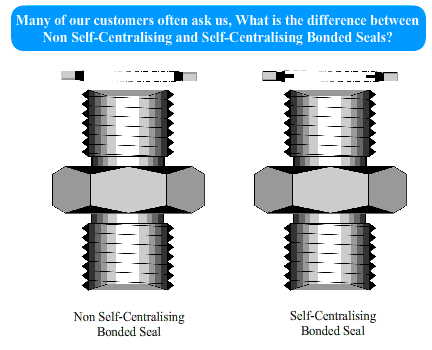

* Difference between general type and self centering
